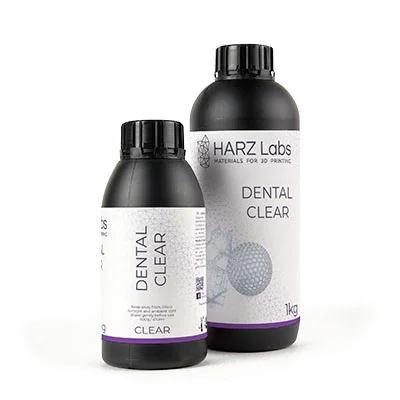

Harz Labs Dental Clear PRO 3D printing resin
Harz Labs Dental Clear PRO 3D printing resin
3D printing resin designed for printing transparent clear models, such as aligners, kappa.
3D Printing resin Harz Labs Dental Clear PRO for transparent clear models.
Designed for printing transparent clear models, such as aligners, kappa, Harz Labs Dental Clear Pro 3D printing resins is precise, very tough, transparent and odorless.
Dental Clear resin is hard PMMA-like hard clear resin designed for printing models, used in dental application, where transparency is one of the main issues.
It can be used to 3D prints demonstration models for operation planning, aligners, surgical guides
Product without european certification, to be used only for models.
Taxes included in price
Upon request, Harz Labs Model 3D printing resin is AVAILABLE FOR SLA 3D PRINTERS like Form1/2 e Peopoly,
Just send an email request to: info@lumindustries.com.
COMPATIBLE WITH MAIN DLP/LCD 3D PRINTERS
Find here more information about 3D printing settings.
3D printing resin Harz Labs Dental Clear PRO characteristics
| Package | 1kg/0.5kg | |
| Applications | Clear Dental models such as aligners | |
| Color | Clear, Transparent | |
| Viscosity (Brookfield) | at 25°C | 0.9-1 Pa.s |
| Hardness (Shore D) | 90-92 | |
| Tensile strenght | 60 N/mm2 | |
| Elongation at break | 4-6% | |
| Shrinkage | <0.5% |
Advantages
LOW VISCOSITY
The resin has relatively low viscosity. It decreases time for leveling, easy to clean to provide maximum accuracy at minimum time.
ODORLESS
Resins are odorless and cause no irritation, so you can work with natural ventilation.
LOW SHRINKAGE
Shrinkage less than 0.5% gives you the same size of the 3D model on your computer
BIOCOMPATIBLE
Produced from biocompatible raw material used in photopolymer teeth fillings. Meets the standards ISO 10993.
TRANSPARENT
High transparency and low yellowing after post treatment.
DURABLE
Very high hardness and tensile strength.
Finishing Instructions
Agitate in a vat with TEK1960* solvent for 1-2 minutes to remove excess resin.
Do not soak in acetone. Do not leave the 3D part soaking in the liquid. Use a soft brush if necessary.
Clean off any excess of liquid with a cold blowdryer or compressed air.
Leave under the sun or in a UV lamp to cure. The resin is fully cured when fingernails do not leave scratch marks on the object.
Even after full post cure some parts may still have a sticky surface. You can treat your print with Ta-Tack Away. A quick wash in this special formula will add a stick-free coating on the printed part.Store the resin in a dry, cool, shaded place out of direct sunlight.
*We do not recommend the use of denatured or isopropyl alcohol (IPA). It is very aggressive on the polymerized resin and it could weaken the structure of the 3D part. It is also flammable and potentially harmful to people and the environment.
Store the resin in a dry, cool, shaded place out of direct sunlight.
Users’ gallery
3D models by Dental Techniques S.n.c. di D'Orlando Mario & C.Safe notice
The company I.D.M di Marin Davide is not a manufacturer of medical materials or devices. The material sold on this site is neither produced nor controlled by the company I.D.M. di Marin Davide, who in no case can be held responsible for any damage caused by use or application of the material, which must only be used on suitable machines and by specialized personnel, exclusively for the purpose indicated, according to the manufacturer's instructions. For resins with European certification, the properties of the finished product vary according to the entire printing and post-curing process; refer to the manufacturer for any information about it.
