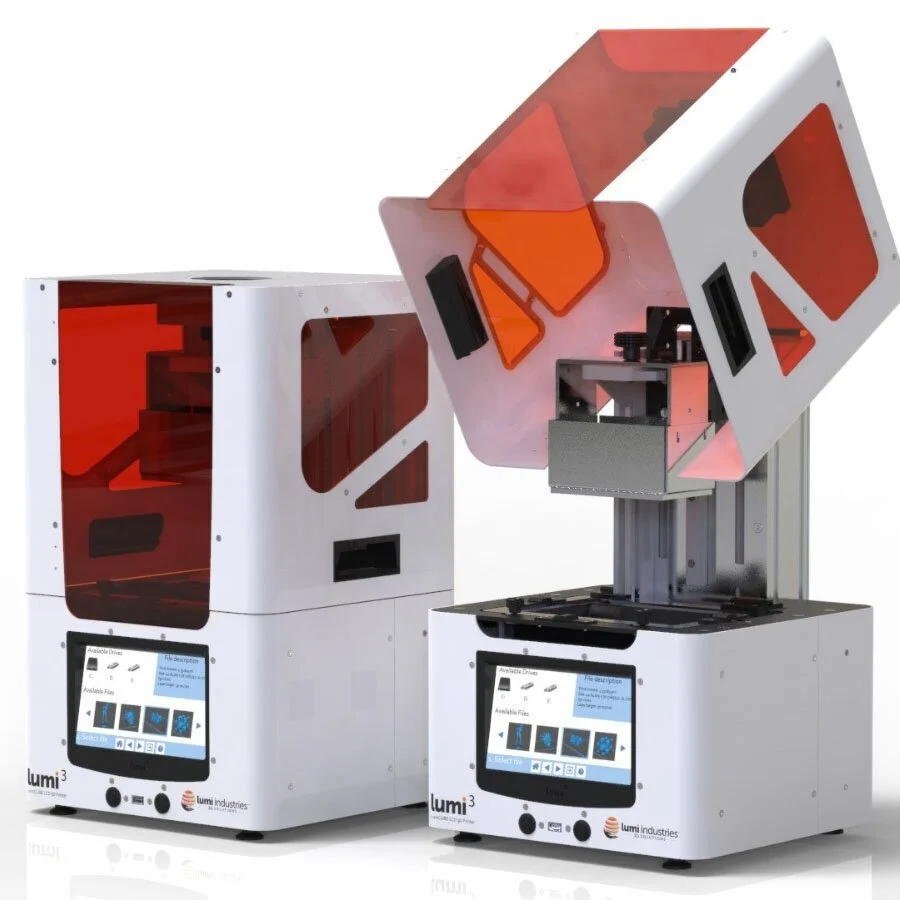

Lumi³ (LumiCUBE) is coming…

Make your work easier with LumiCube

One 3D Printer, 4 innovative solutions!

Get ready for Lumi industries masterpiece! Born from our long expertise and our experience with professionals of the jewellery and dental field, Lumi³ (LumiCUBE) is providing all what you are asking to a resin desktop 3D printer for your daily work.

PREORDER NOW

Featured on

Remove your 3Dprints in one single move!

3D Printing & Post Processing All in One!

Integrated PC for total control and accessibility

Save time and money with Easy Fep Vat

3D printer, PC and UV post-processing unit in one machine!

SPACE AND MONEY SAVING INTEGRATED POST PROCESSING - With original Patent Pending HUT system accessory, your 3D printer becomes a UV light Box. No need to spend for additional bulky devices to complete your 3D printing process!

MODULAR INTERCHANGEABLE TRAY SYSTEM - Type1 -Smart flexible building platform for easy 3D prints removal with medium and low viscosity resin. No more fighting with spatulas! Type2 Special treated glass building platform for perfect adherence of high viscosity flexible or ceramic filled resins.

EFV (EasyFepVat) proprietary system. Don’t become crazy changing the FEP Film. EFV is a low-cost, low environmental impact and easily replaceable resin vat.

TIME SAVING, CONSTANT, REPEATABLE PERFORMANCE - NO CONTINUOUS ADJUSTMENT REQUIRED thanks to precise sturdy high precision Z axis linear motion system. Pressure sensors keep building platform pressure on the LCD screen under control avoiding disruptions.

HIGH XY ACCURACY thanks to the use of optimised parallel lenses UV lighting system.

BUILT-IN LARGE TOUCHSCREEN PC providing

User-friendly interface for 3D printing process total control,
Alert system with real-time notifications,
3D printing process report with pressure and heat data graphics,
Possibility of One-click direct supply request before materials get over,
Watch pre-loaded tutorials and video guides on the 3D printer screen itself.

OPEN MATERIAL SYSTEM allowing the use of major photosensitive resins in the market curing at 405nm.

PASSIVE RESIN HEATING CONTROLS - LED heat sensors keep internal and resin temperature controlled around 35-40°.

TECHNICAL SPECIFICATIONS


    Technology
    MSLA - UV LCD

    Building area
    120.96*68.04*100 mm

    Resolution XY axis
    47.3*47.3 µm (2K)

    Layer Thickness (Z)
    20/30/50/100 µm

    Av. Build Speed
    30mm/hour

    Lighting System
    Parallel UV LED system

    Resin Wavelength
    405 nm

    Resin Vat
     Patent Pending Easy Fep Tray.

    Printer Control
    Integrated PC, 7" Color Touchscreen

    Printer Operating System
    Windows 10 with orginal Lumisoftware

    Software
    Formware / Chitubox

    Building Plate
     Patent pending interchangeable Modular Tray System

    Post Processing
     Patent Pending HTU, Integrated Post Processing Chamber

    Input Format
    STL

    Connectivity
    Wi-Fi, USB

    Dimensions
    30*30*50 cm

    Weight
    13,50 kg

    AC Input
    100-240v

    Safety feature
    Ventilation system with HEPA + active carbon filter

    Operating temperature
    External 18-30°C
 Internal automatic control at 35-40°C

LumiCube FEP resin VAT (Easy Fep Vat) allows you to have a full view of the building platform and total control of the 3D printing process, especially on the most critical first layers, saving you time and material.

Lumi³ (LumiCube) original patent pending solutions

APPLICATIONS

DENTAL SECTOR

Suitable for fast and low cost creation of models, braces, dimes, arches, temporary bridges and crowns. Tested with Harzlabs , Lumireact and Fun To Do professional dental resins.

JEWELLERY AND ACCESSORY DESIGN

Goldsmith's work is made easier with excellent details 3D printed model of rings, pendants, accessories ready for metal casting or silicon moulding. Castable resin available.
